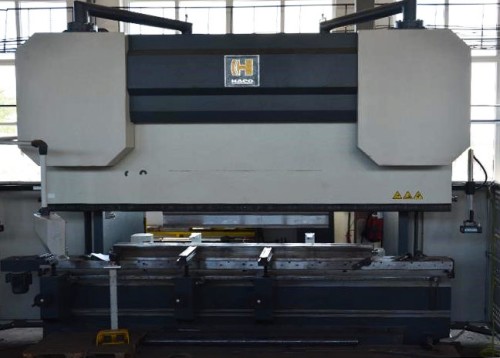

CNC Press Brake EUROMASTER ERM40400

CNC Press Brake EUROMASTER ERM40400
Basic info: hydraulic clamping of upper tool
6 axiss design
CNC bombirung
safety light for full speed production
front shoulder type II 3 pcs.
Technical parameters:
pressing power: 4 000 kN
working length: 4 100 mm
guage betweensidewalls: 3 150 mm
working stroke:  250 mm
openning between the ram and table:  500 mm
clamping of the upper tool:  HACO
back stop:  800 mm
high of the table from the floor: 1 040 mm
approach speed:  90 mm/s
working speed:  7 mm/s
return speed:  60 mm/s
power of the main engine:  37,5 kW
Construction type welded monoblock
Back stop: 400 mm/s
  CNC controlled, X range 600 mm
Control: foot control
Dimensions:
length: 4 500 mm
width: 2 100 mm
height: 3 960 mm
mass: 34,0 t
Software - FASTBEND 2D: 15´´ monitor
system Win NT
off line programming
upload possible for 8 axis control
2D programing shape of the product
auto. callcul. of the bending par. depend on thickness of the mat.
2D simulation
material library
Tools library
